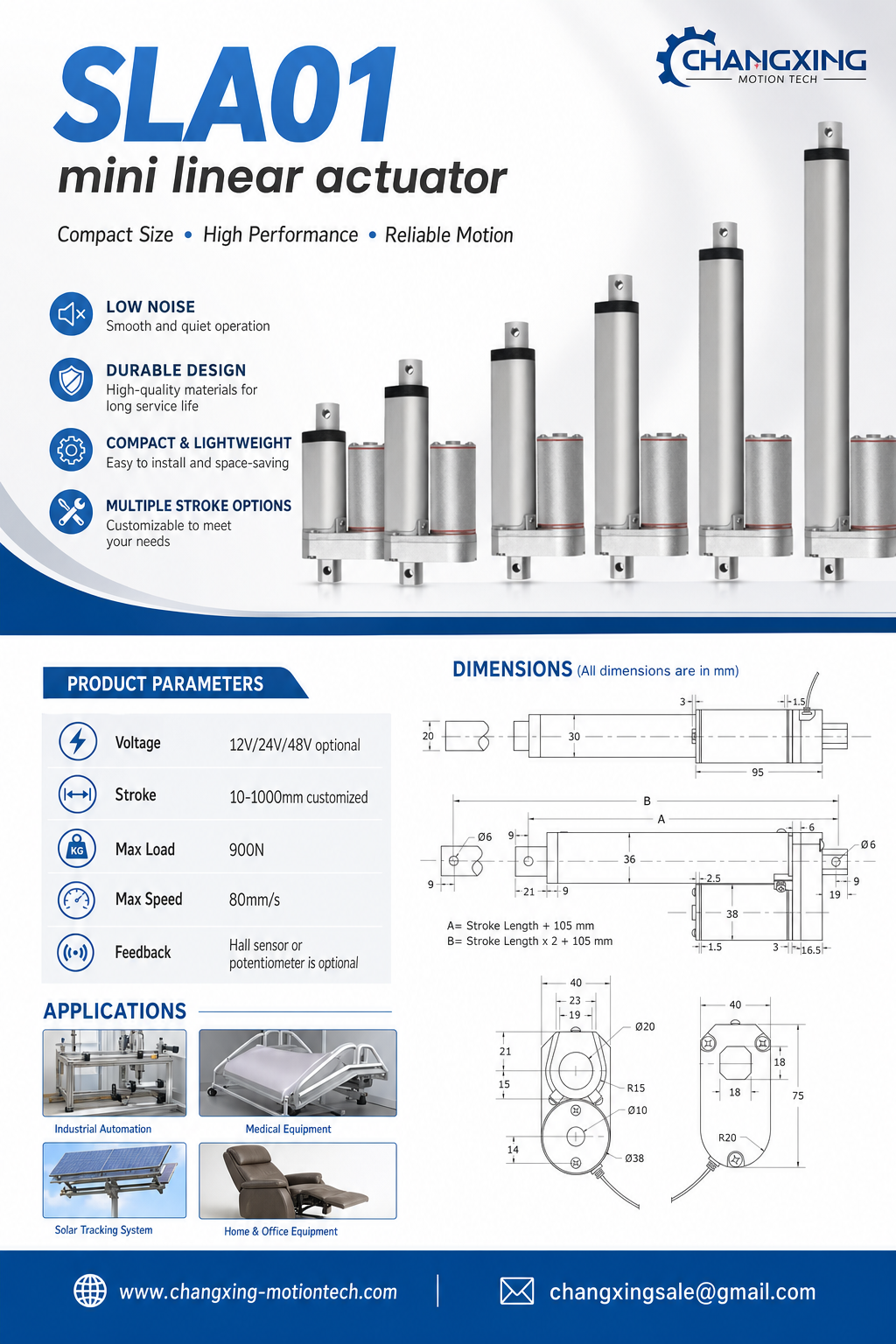

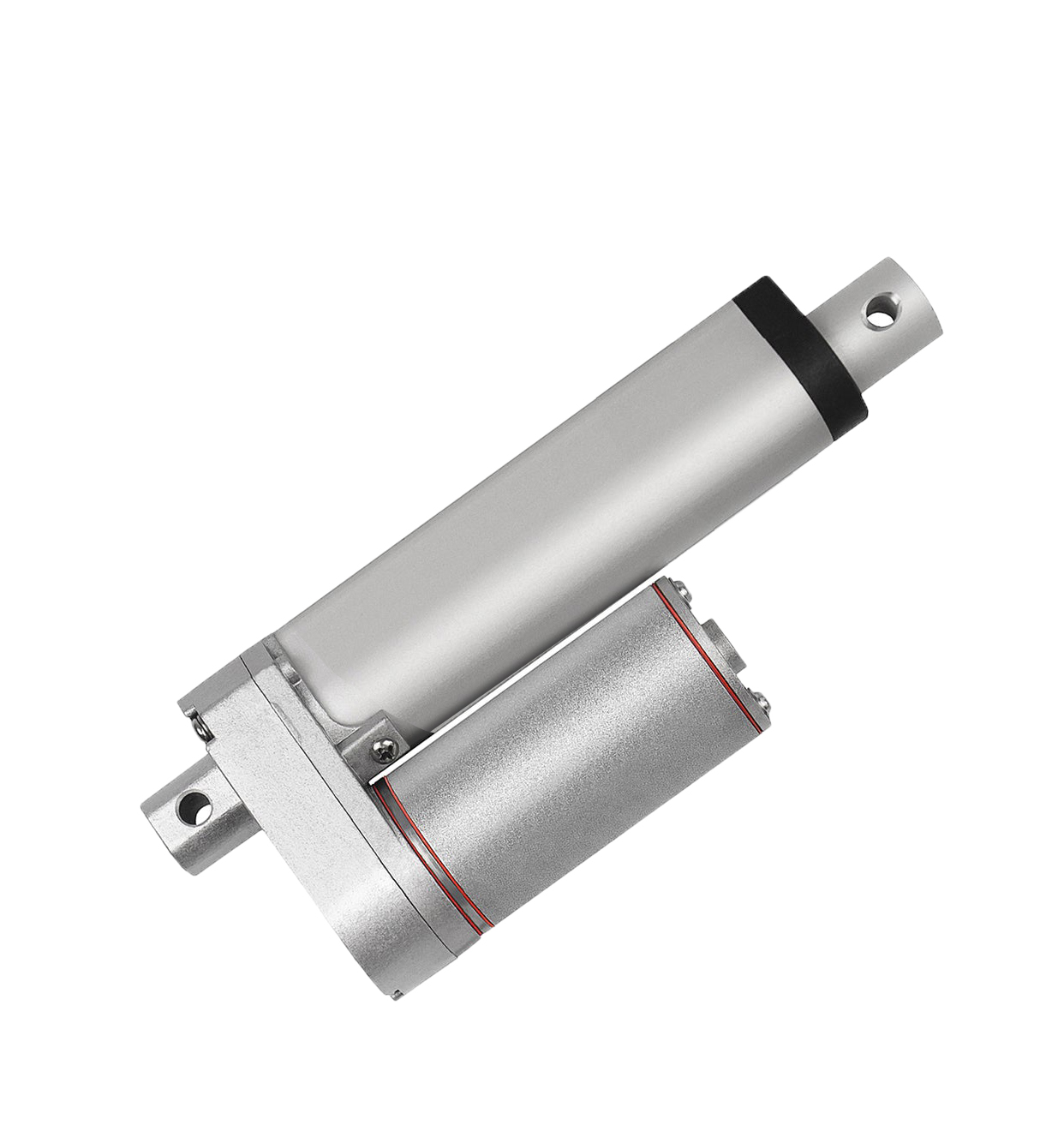

SLA01 Mini Electric Linear Actuator
SLA01 is a compact electric linear actuator for precise push-pull movement in limited-space applications. It is suitable for robotics, medical devices, smart furniture, small automation equipment, automotive mechanisms, and custom OEM projects.
Voltage
12V / 24V DC
Type
Compact Push-Pull Actuator
Compact Design
Designed for applications where installation space is limited but reliable linear motion is required.
DC Motor Drive
Available with DC voltage options for battery-powered devices, automation systems, and equipment integration.
Custom Stroke
Stroke length and installation dimensions can be selected according to the machine movement requirement.
OEM Friendly
Supports customized cables, connectors, brackets, speed, feedback, and mounting solutions for OEM projects.
Technical Data
SLA01 linear actuator specifications
The final specification depends on your selected load, stroke, speed, voltage, and feedback requirement. Contact us for a detailed drawing or custom configuration.
| Model | SLA01 |
|---|---|
| Product Type | Mini electric linear actuator |
| Voltage | 12V DC / 24V DC optional |
| Stroke Length | Custom stroke available according to project requirements |
| Load Capacity | Depends on selected speed, motor, screw, and structure |
| Speed | Custom speed options available |
| Limit Switch | Built-in limit switch option |
| Feedback Option | Hall sensor or potentiometer optional depending on model configuration |
| Protection Rating | Protection level depends on selected version and sealing design |
| Custom Options | Stroke, voltage, speed, cable length, connector, bracket, feedback, and mounting design |
Applications
Where can SLA01 mini linear actuator be used?
SLA01 is recommended for compact push-pull motion, small lifting systems, position adjustment, opening and closing mechanisms, and equipment where quiet and clean electric movement is preferred.
Robotics
Compact push-pull motion for robot arms, service robots, inspection robots, and small automation modules.
Medical Devices
Position adjustment for treatment devices, chairs, beds, rehabilitation equipment, and healthcare mechanisms.
Smart Furniture
Recliners, small lifting cabinets, adjustable desks, hidden compartments, and ergonomic furniture mechanisms.
Automotive Systems
Small hatches, covers, vents, access doors, and special vehicle mechanisms requiring controlled linear movement.
Selection Guide
How to select SLA01 for your project?
- Confirm the required stroke length.
- Confirm the real push or pull load.
- Choose 12V DC or 24V DC according to your power supply.
- Check the required speed under load.
- Measure the available installation space.
- Decide whether position feedback is required.
- Confirm whether the actuator will be used indoors or outdoors.
- Send drawings or application photos for model recommendation.
Customization
Custom SLA01 linear actuator options
- Custom stroke length
- Custom voltage
- Custom speed and load combination
- Custom cable length
- Custom connector
- Custom mounting bracket
- Hall sensor or potentiometer feedback
- OEM label, packaging, and project-specific configuration
FAQ
SLA01 linear actuator FAQ
Is SLA01 suitable for small automation equipment?
Yes. SLA01 is suitable for compact automation equipment, small doors, covers, adjustment mechanisms, and motion systems where a small electric linear actuator is required.
Can SLA01 use position feedback?
Position feedback such as Hall sensor or potentiometer may be available depending on configuration. Please confirm feedback requirements before ordering.
Can I order a custom stroke length?
Yes. Stroke length can usually be customized according to application movement distance, installation length, and product structure.
Related Products
Other electric linear actuators
Request a Quote
Need SLA01 or a custom linear actuator?
Send us your load, stroke, voltage, speed, installation space, quantity, and application. We will recommend a suitable actuator or custom configuration.
